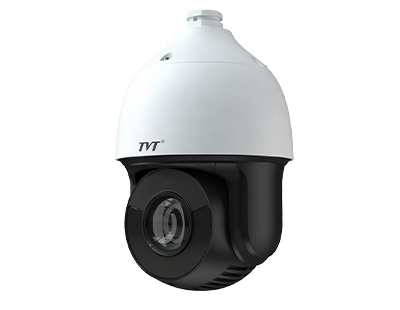

| Camera Module |
TD-8623IM |
| System |
Hi3516DV300,2GB LPDDR3, 4GB FLASH, product active till Dec,2022 |
| Image sensor |
1/1.8” progressive scan CMOS |
| Mini. Illumination |
Color 0.002Lux @ (F1.5 AGC ON) B/W 0.0004Lux @(F1.5 AGC ON); 0Lux with IR |
| Image setting |
Flip, Mirror, Saturation, Brightness, Contrast, Sharpness, AGC, and AWB adjusted by client software/browser |
| Shutter Speed |
1/1 s – 1/10,000 s |
| White Balance |
Auto/Manual/Indoor/Outdoor |
| Gain |
Auto/Manual |
| Day & Night |
IR Cut filter |
| Digital Zoom |
16x |
| Privacy Mask |
4 Programmable privacy masks |
| 3D DNR |
Auto/Manual |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
120 dB |
| Defog |
Electronic |
| EIS |
Yes |
| Regional Exposure |
No |
| Picture overlay |
Logo picture could be overlaid on video with 128x128pixels,24bits BMP format |
| Lens |
| Focus length |
f=5.6 ~ 179.2 mm lens,32x optical |
| Zoom Speed |
Approx. 4.2s (optical zoom, wide-tele) |
| Field of View |
Horizontal:59.8°to 2.3°(wide -tele); Vertical: 33.6°to 1.3°(wide -tele); Diagonal: 68.6°to 2.6°(wide -tele) |
| Working distance |
wide: 1.0m ~ INF; tele: 1.5m ~ INF |
| Aperture Range |
F1.55 ~ F3.4 (wide-tele) |
| PTZ |
| Pan Range |
360°endless |
| Pan speed |
Configurable, from 0.1~240°/s; Preset speed: 240°/s |
| Tilt Range |
From -25°to 180° auto-flip at 90° |
| Tilt Speed |
Configurable, from 0.1°~ 180°/s, Preset speed: 180°/s |
| Proportional Zoom |
Yes |
| Preset |
300 |
| Cruise |
8 cruises, up to 16 presets for each cruises |
| Track |
4 tracks, record time over 3 minutes for each track |
| Power off memory |
Support |
| Action mode |
Preset/Cruise/Track/Auto Scan/Random Scan |
| 3D Positioning |
Support |
| PTZ Position Display |
Support |
| Schedule Task |
Preset/Cruise/Track/Random Scan/Boundary Scanning /Dome reboot |
| IR |
| IR Distance |
200m (656 f.t.) 10x IR LEDs |
| Smart IR |
Yes |
| Network |
| Max Resolution |
1920×1080 |
| Main stream |
1920 × 1080, 1280 × 960, 1280 × 720 25/30fps |
| Sub stream |
25fps (704 × 576, 640 × 480, 352 × 288) |
| 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream |
25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| SVC |
Yes |
| Video compression |
Smart H.265/H.264/MJPEG |
| Audio compression |
G.711 A/U |
| Audio Enhancement |
No |
| Protocols |
HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP,UDP, IGMP, ICMP,DHCP, PPPoE |
| Simultaneous live view |
Up to 6 channels |
| User / Host |
Up to 16 users, 3 levels: Administrator, Advanced User and Normal User |
| Security Measures |
User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption, IEEE802.1x port-based network access control; IP address filtering |
| Smart Features |
|
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, SD full, SD error) , defocus detection |
| Basic event |
| Face recognize /compare |
Default off, Max 30 human faces per second. |
| People density / LPR |
Not support by this software version |
| Smart Detection |
Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Scene change detection, Support alarm triggering by human or vehicle, filtering flag/animal. |
| Smart Tracking |
Manual Tracking, Auto Tracking (human or vehicle) |
| System Integration |
| External Alarm Interface |
2CH alarm input; 2CH alarm output |
| External Audio Interface |
1CH audio input, 2 to 2.4v[p-p] 1KΩ ±10%; 1CH audio output (line out), impedance: 600Ω |
|
Alarm actions, such as Preset, Cruise, Track, Memory Card Video Record, Trigger Recording, Notify Surveillance |
| Alarm Linkage |
Center, Upload to FTP/Memory Card, Send Email, etc. |
| Network Interface |
1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.bt,class 7) |
| CVBS |
Yes, 1 BNC connector |
| RS 485 |
Pelco-D / P protocol, custom protocols available |
| Storage |
On-Body memory card slot, support microSD/SDHC/SDXC, up to 256G |
| API |
ONVIF, support TVT SDK and third-party management platform |
| Client |
TVT N9000 1.4.5, TVT NVMS 2.0; and the third-party client |
| Web Browser |
IE(8-11);Firefox( below 44);Chrome(below 76); Not support Safari |
| General |
| Power |
AC24V, DC24V,PoE+ (802.3.bt, class 7), (Max 50W, include IR on, Heater on, Fan working) |
| Working condition |
-50°C ~ 65°C ( -58°F ~ 149°F),90%RH less (non -condensing),Cold start at – 40°C |
| Storage condition |
-40°C ~ 70°C ; ≤ 95% RH |
| Protection |
IP67, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material |
Aluminum Alloy; PC+10% GF |

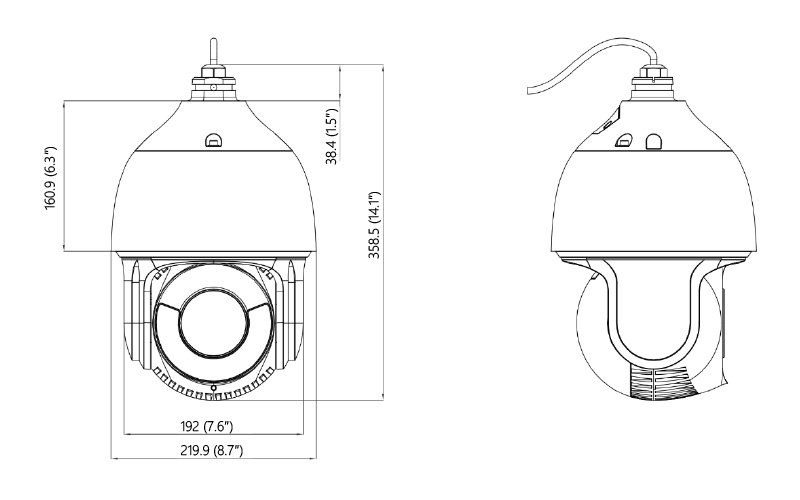

| Dimensions |
219.9mm x H 358.5mm( 8.7” x 14.1”) |
| Weight |
Approx. 6.0 Kg (13.22 lb.) |
| Certification |
IP67,ROHS, CE, FC |
