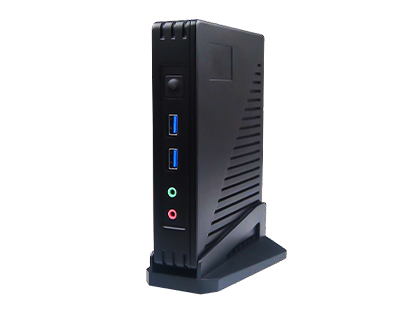

Đầu ghi Camera IP Mini TD-A300-MTC-E
Mã: TD-A300-MTC-E
– Hỗ trợ giao thức riêng TVT, giao thức ONVIF, RTSP tiêu chuẩn, SDK
– Hỗ trợ 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P;
– Hỗ trợ khả năng ghi 4CH 8MP hoặc 6CH 5MP hoặc 8CH 4MP hoặc 14CH 1080P hoặc 33CH 720P hoặc 36CH D1 (orlower);
– Hỗ trợ điều khiển bàn phím và tường TV bằng bộ giải mã;
– Hỗ trợ quản lý vận hành và bảo trì;
– Hỗ trợ truy cập IPC Nhận dạng khuôn mặt, IPC prtection theo chu vi và ANPR IPC, sau đó nhận các tính năng phù hợp cho các giải pháp AI liên quan
Đầu ghi Camera IP Mini TD-A300-MTC-E
– Hỗ trợ giao thức riêng TVT, giao thức ONVIF, RTSP tiêu chuẩn, SDK
– Hỗ trợ 12MP / 8MP / 5MP / 4MP / 3MP / 1080P / 720P;
– Hỗ trợ khả năng ghi 4CH 8MP hoặc 6CH 5MP hoặc 8CH 4MP hoặc 14CH 1080P hoặc 33CH 720P hoặc 36CH D1 (orlower);
– Hỗ trợ điều khiển bàn phím và tường TV bằng bộ giải mã;
– Hỗ trợ quản lý vận hành và bảo trì;
– Hỗ trợ truy cập IPC Nhận dạng khuôn mặt, IPC prtection theo chu vi và ANPR IPC, sau đó nhận các tính năng phù hợp cho các giải pháp AI liên quan
Kích thước
TD-A300-MTC-E
| Model |
TD-A300-MTC-E |
TD-A300-MTC-S |
|
| System |
CPU |
Intel® Pentium 4405U |
|
| Memory |
DDR4，8GB |
DDR4，4GB |
|
| Graphics Card |
Integrated Graphics，Intel® HD Graphics 510 |
|
| Operation System |
Linux |
|
| Software |
Software |
NVMS standard (custom) |
|
| Decoding Capability |
6CH 1080P or 32CH D1 |
4CH 1080P or 24CH D1 |
|
| Max. Number of Channel Access |
256CH |
128CH |
|
| Max. Number of Device Access |
64 NVRs/FR Servers |
32 NVRs/ FR Servers |
|
| AI Capability |
Support the integrated management of face detection IPCs, face match servers, face recognition terminals, face match NVRs，ANPR cameras |
|
| Support face detection, image search by face image, track playback, allow list and block list alarm as well as stranger alarm |
|
| Support face attendance, face greeting, people counting, parking lot management |
|
| Access |
Support local GUI access; external mouse, keyboard and monitor; multi-monitor display |
|
| Protocol |
Private protocol, SDK, ONVIF, RTSP, |
|
| Live View |
Support multi-screen display mode; support customized |
|
| screen display mode, corridor mode, channel group auto-switch, stream self-adaption, manual record and snapshot |
|
| Support search record by time period, time slice, time and tag; support synchronous or asynchronous playback; support record backup |
|
|
| Alarm Linkage |
Support triggering message popup, audio, live view window, recording with tag, |
|
| decoding on TV Wall |
|
| PTZ Control |
zoom in, zoom out, preset, cruise, 3D control |
|
| HDD |
System HDD |
mSATA SSD 128GB |
|
| Data HDD |
NO |
|
| HDMI Output |
1CH HDMI @ 4K |
|
| VGA Output |
1 VGA @ 1080P |
|
| Audio Output |
1CH Line out |
|
| Video &Audio |
Two-way Audio |
1CH MIC IN |
|
| External Interface |
Ethernet Interface |
1 个，RJ45 10M/100M/1000M self-adaptive Ethernet port |
|
| Others |
USB Interface |
6 USB ports: USB 3.0×2（front panel），USB 2.0×2（rear panel）， USB 3.0×2（rear panel） |
|
|
| Wi-Fi |
1xM.2 2230（optional） |
|
| Power |
DC 12V/3A |
|
| Power Consumption |
≤36W |
|
| Working Temperature |
-5℃–＋45℃ |
|
| Storing Temperature |
-20℃–＋70℃ |
|
| Working Humidity |
10%–95% |
|
| Dimensions |
154mm(W)×120mm(H)×30mm(D) |
|
| Weight |
≤0.47Kg |
|
TD-A300-MTC-S
| Model |
TD-A300-MTC-E |
TD-A300-MTC-S |
|
| System |
CPU |
Intel® Pentium 4405U |
|
| Memory |
DDR4，8GB |
DDR4，4GB |
|
| Graphics Card |
Integrated Graphics，Intel® HD Graphics 510 |
|
| Operation System |
Linux |
|
| Software |
Software |
NVMS standard (custom) |
|
| Decoding Capability |
6CH 1080P or 32CH D1 |
4CH 1080P or 24CH D1 |
|
| Max. Number of Channel Access |
256CH |
128CH |
|
| Max. Number of Device Access |
64 NVRs/FR Servers |
32 NVRs/ FR Servers |
|
| AI Capability |
Support the integrated management of face detection IPCs, face match servers, face recognition terminals, face match NVRs，ANPR cameras |
|
| Support face detection, image search by face image, track playback, allow list and block list alarm as well as stranger alarm |
|
| Support face attendance, face greeting, people counting, parking lot management |
|
| Access |
Support local GUI access; external mouse, keyboard and monitor; multi-monitor display |
|
| Protocol |
Private protocol, SDK, ONVIF, RTSP, |
|
| Live View |
Support multi-screen display mode; support customized |
|
| screen display mode, corridor mode, channel group auto-switch, stream self-adaption, manual record and snapshot |
|
| Support search record by time period, time slice, time and tag; support synchronous or asynchronous playback; support record backup |
|
|
| Alarm Linkage |
Support triggering message popup, audio, live view window, recording with tag, |
|
| decoding on TV Wall |
|
| PTZ Control |
zoom in, zoom out, preset, cruise, 3D control |
|
| HDD |
System HDD |
mSATA SSD 128GB |
|
| Data HDD |
NO |
|
| HDMI Output |
1CH HDMI @ 4K |
|
| VGA Output |
1 VGA @ 1080P |
|
| Audio Output |
1CH Line out |
|
| Video &Audio |
Two-way Audio |
1CH MIC IN |
|
| External Interface |
Ethernet Interface |
1 个，RJ45 10M/100M/1000M self-adaptive Ethernet port |
|
| Others |
USB Interface |
6 USB ports: USB 3.0×2（front panel），USB 2.0×2（rear panel）， USB 3.0×2（rear panel） |
|
|
| Wi-Fi |
1xM.2 2230（optional） |
|
| Power |
DC 12V/3A |
|
| Power Consumption |
≤36W |
|
| Working Temperature |
-5℃–＋45℃ |
|
| Storing Temperature |
-20℃–＋70℃ |
|
| Working Humidity |
10%–95% |
|
| Dimensions |
154mm(W)×120mm(H)×30mm(D) |
|
| Weight |
≤0.47Kg |
|
